Yuchai stock

I. INTRODUCTION of Yuchai stock series

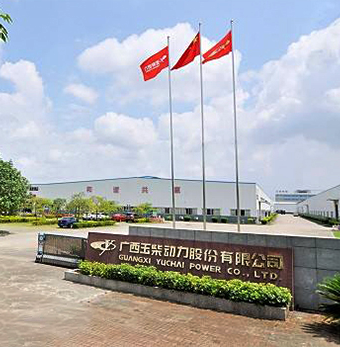

Yuchai now has 30 wholly-owned, holding and shareholding subsidiaries with 17000 employees and total assets of 17.5 billion yuan. The annual production and sales volume of the engine is called “the capital of China’s green power”. The main business of Yuchai Group includes six major sectors, including diesel engines, construction machinery, auto parts, Automotive chemicals, logistics electromechanical and special purpose vehicles. It has the strength of producing and selling 700000 diesel engines of various types and 10000 small and medium-sized construction machinery annually, occupying half of the domestic high-grade diesel engine oil and ranking among the top three road transport enterprises in China.

It has 42 series of light, medium and heavy diesel engines including vehicles, ships, construction machinery, agricultural machinery and diesel power of power generation equipment, with power coverage of 6~25000 horsepower; Yuchai products have the characteristics of large horsepower, large torque, high reliability, low fuel consumption, low emission, low noise, strong adaptability and perfect and convenient service, becoming the preferred supporting power for domestic automobiles, construction machinery, agricultural machinery, etc.

II. Characteristics of Yuchai stock generator set

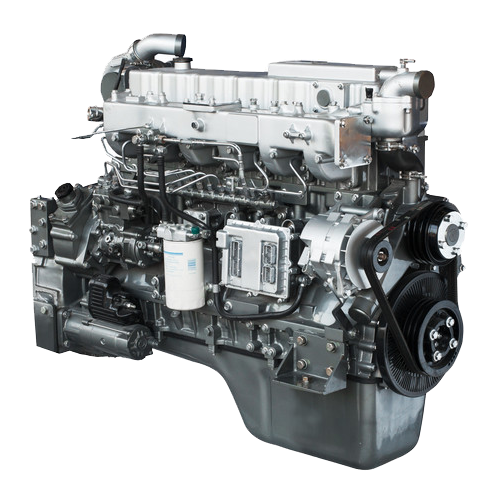

Yuchai has been developing and producing six-cylinder diesel engine since 1981. Its stable and reliable quality has won the favor of users, and it has been listed as an energy-saving product by the state, which has confirmed the brand status of “Yuchai machine and Ace Power. Its products have the following advantages:

Digesting and absorbing the products developed by the consulting results of German FEV company;

The body and cylinder head using integral crankshaft alloy cast iron have small volume, light weight and high reliability, and the overhaul period is more than 10,000 hours;

Using No. 1 reinforced high-pressure oil pump, the fuel injection pressure is high, and the fuel consumption index is far better than that of domestic products of the same power gear; Using Yuchai’s proprietary piston ring sealing technology, the lubricating oil consumption is 50% lower than that of domestic products of the same power gear; Optional electronic speed regulating oil pump

III. Units in each power section of Yuchai series

Parameter list of each power segment of Yuchai series diesel generator set open frame model

National second unit model	Rated Power(K W)	Motor capacity(KVA)	Engine model	Fuel consumption power(≤ g/kw. h)	Engine				Rated current(A)	Unit weight(KG)	Dimensions(L * W * H mm)
					1H power	Cylinder number	Cylinder diameter * stroke	Displacement
YX16 GF	16	20	YC2105D	225	19.8	L2	105* 12 0	2.078	28.8	920	1800*750*1200
YX16 GF	16	20	YC2108D	225	19.8	L2	108* 12 0	2.493	28.8	920	1800*750*1200
YX20 GF	20	25	YC2115D	225	26.4	L2	115* 12 0	2.493	36	920	1800*750*1200
YX24 GF	24	30	YC2115ZD	225	33	L2	115* 12 0	2.493	43.2	920	1800*750*1200
YX30 GF	30	37.5	YCD4R12D-40	242	33	L4	98 *115	3.468	54	920	1800*750*1200
YX30 GF	30	37.5	YCD4M12D-50	242	39.6	L4	98 *115	3.707	54	920	1800*750*1200
YX30 GF	30	37.5	YCD4J12D-55	225	44	L4	105* 12 5	4.33	54	950	1800*750*1200
YX35 GF	35	43.75	YC4D60-D 21	205	44	L4	108* 11 5	4.214	63	950	1800*750*1200
YX40 GF	40	50	YC4T22D-70	205	55	L4	102* 11 8	3.857	72	1000	1800*750*1200
YX40 GF	40	50	YCD4J22D-65	205	55	L4	105* 12 5	4.33	72	980	1800*750*1200
YX50 GF	50	62.5	YCD4P22D-80	205	66	L4	108* 12 5	4.58	90	1000	1800*750*1200

National second unit model	Rated Power(K W)	Motor capacity(KVA)	Engine model	Fuel consumption power(≤ g/kw. h)	Engine				Rated current(A)	Unit weight(KG)	Dimensions(L * W * H mm)
					1H power	Cylinder number	Cylinder diameter * stroke	Displacement
YX50 GF	50	62.5	YC4D90Z-D21	205	66	L4	108* 11 5	4.214	90	1000	1800*750*1200
YX60 GF	60	75	YCD4Y22D-95	205	77	L4	110* 12 5	4.75	108	1000	1800*750*1200
YX60 GF	60	75	YC4A100Z-D20	200	73.5	L4	108* 13 2	4.84	108	1000	1800*750*1200
YX75 GF	75	93.75	YCD4Y22D-110	225	88	L4	110* 12 5	4.75	135	1000	1800*750*1200
YX80 GF	80	100	YCD4Y32D-130	225	110	L4	110* 12 5	4.75	144	1500	2300*800*1300
YX80 GF	80	100	YC4A140L-D20	200	105	L4	108* 13 2	4.84	144	1000	2250*800*1300
YX10 0GF	100	125	YC4A180L-D20	200	132	L4	108* 13 2	4.84	180	1000	2250*800*1300
YX10 0GF	100	125	YC6B180L-D20	200	132	L6	108* 12 5	6.871	180	1600	2300*800*1300
YX12 0GF	120	150	YC6B205L-D20	200	152	L6	108* 12 5	6.871	216	1600	2300*800*1300
YX15 0GF	150	187.5	YC6A245L-D20	192	181.5	L6	108* 13 2	7.252	270	2750	3100*1050*1750
YX20	200	250	YC6MK350	195	258.	L6	123	10.3	360	2570	3100*10

National second unit model	Rated Power(K W)	Motor capacity(KVA)	Engine model	Fuel consumption power(≤ g/kw. h)	Engine				Rated current(A)	Unit weight(KG)	Dimensions(L * W * H mm)
					1H power	Cylinder number	Cylinder diameter * stroke	Displacement
0GF			L-D20		5		* 14 5	38			50*1750
YX25 0GF	250	312.5	YC6MK420 L-D20	195	309	L6	123* 14 5	10.338	450	3000	3200*1150*1750
YX28 0GF	280	350	YC6MJ480 L-D20	195	352	L6	131* 14 5	11.726	504	3100	3200*1150*1750
YX30 0GF	300	375	YC6MJ500 L-D21	195	405	L6	145* 16 5	16.35	540	3900	3400*1500*1970
YX32 0GF	320	400	YC6T550L-D21	195	405	L6	145* 16 5	16.35	576	3900	3400*1500*1970
YX35 0GF	350	437.5	YC6T600L-D22	195	441	L6	145* 16 5	16.35	630	4000	3500*1500*1970
YX40 0GF	400	500	YC6T660L-D20	195	485	L6	145* 16 5	16.35	720	4000	3500*1500*1970
Model of the third National Unit	Rated Power(K W)	Motor capacity(KVA)	Engine model	Fuel consumption power(≤ g/kw. h)	Engine				Rated current(A)	Unit weight(KG)	Dimensions(L * W * H mm)
YX16 GF	16	20	4D24G6	200	20.4	L4	87 *103	2.45	28.8	28.8	1800*750*1200
YX20 GF	20	25	4D24G7	200	25.4	L4	87 *103	2.45	36	850	1800*750*1200

National second unit model	Rated Power(K W)	Motor capacity(KVA)	Engine model	Fuel consumption power(≤ g/kw. h)	Engine				Rated current(A)	Unit weight(KG)	Dimensions(L * W * H mm)
					1H power	Cylinder number	Cylinder diameter * stroke	Displacement
YX24 GF	24	30	4D24TG2	200	30.8	L4	87 *103	2.45	43.2	850	1800*750*1200
YX30 GF	30	37.5	4D24TG0	200	39.6	L4	87 *103	2.45	54	850	1800*750*1200
YX40 GF	40	50	YC4D80-D 34	205	59	L4	108* 11 5	4.21	72	980	1800*700*1200
YX50 GF	50	62.5	YC4D90-D 34	205	66	L4	108* 11 5	4.21	90	1000	1800*700*1200
YX60 GF	60	75	YC4D105-D34	205	77	L4	108* 11 5	4.21	108	1000	1800*700*1200
YX70 GF	70	87.5	YC4D120-D31	205	88	L4	108* 11 5	4.21	126	1000	1800*700*1200
YX80 GF	80	100	YC4D140-D31	205	105	L4	108* 11 5	4.21	144	1000	1800*700*1200
YX80 GF	80	100	YC4A140-D30	205	105	L4	108* 13 2	4.84	144	1000	1800*700*1200
YX90 GF	90	112.5	YC4D155-D31	205	113	L4	108* 11 5	4.21	162	1000	1800*700*1200
YX90 GF	90	112.5	YC4A155-D30	205	113	L4	108* 13 2	4.84	162	1000	1800*700*1200
YX90 GF	90	112.5	YC4A165-D30	205	121	L4	108* 13 2	4.84	162	1000	1800*700*1200

National second unit model	Rated Power(K W)	Motor capacity(KVA)	Engine model	Fuel consumption power(≤ g/kw. h)	Engine				Rated current(A)	Unit weight(KG)	Dimensions(L * W * H mm)
					1H power	Cylinder number	Cylinder diameter * stroke	Displacement
YX11 0GF	110	137.5	YC4A190-D30	205	138	L4	108* 13 2	4.84	198	1000	1800*700*1200
YX12 0GF	120	150	YC6A205-D30	220	152	L6	108* 13 2	7.26	216	1500	2300*800*1300
YX14 0GF	140	175	YC6A230-D30	220	171	L6	108* 13 2	7.26	252	1500	2300*800*1300
YX15 0GF	150	187.5	YC6A245-D30	220	181	L6	108* 13 2	7.26	270	2100	2400*970*1500
YX16 0GF	160	200	YC6A275-D30	220	203	L6	108* 13 2	7.26	288	2100	2400*970*1500
YX20 0GF	200	250	YC6MK350-D30	195	259	L6	123* 14 5	10.34	360	2100	2400*970*1500
YX25 0GF	250	312.5	YC6MK420-D30	195	309	L6	123* 14 5	10.34	450	2750	3100*1050*1750
YX28 0GF	280	350	YC6MK450-D30	195	331	L6	123* 14 5	10.34	504	2750	3100*1050*1750
YX30 0GF	300	330	YC6MJ500-D30	195	370	L6	123* 14 5	10.34	540	2750	3100*1050*1750
YX30 0GF	300	375	YC6K500-D31	192	370	L6	129* 15 5	12.16	540	2750	3100*1050*1750
YX32	320	400	YC6K520-	192	382	L6	129	12.1	576	3800	3400*15

National second unit model	Rated Power(K W)	Motor capacity(KVA)	Engine model	Fuel consumption power(≤ g/kw. h)	Engine				Rated current(A)	Unit weight(KG)	Dimensions(L * W * H mm)
					1H power	Cylinder number	Cylinder diameter * stroke	Displacement
0GF			D30				* 15 5	6			00*1950
YX35 0GF	350	437.5	YC6K600-D30	192	420	L6	129* 16 5	12.94	630	3900	3400*1500*1950
YX40 0GF	400	500	YC6T660-D31	195	485	L6	145* 16 5	16.35	720	3900	3400*1500*1950
YX45 0GF	450	562.5	YC6TD780-D31	195	572	L6	152* 18 0	19.6	810	4300	3500*1500*1950
YX50 0GF	500	625	YC6TD840-D31	195	616	L6	152* 18 0	19.6	900	4300	3500*1500*1950
YX55 0GF	550	687.5	YC6TD900-D31	195	665	L6	152* 18 0	19.6	990	4300	3500*1500*1950
YX60 0GF	600	750	YC6TD100 0-D30	195	735	L6	152* 18 0	19.6	1080	4300	3500*1500*1950
YX60 0GF	600	750	YC6C1020-D31	195	748	L6	200* 21 0	39.58	1080	5200	4000*1500*2000
YX65 0GF	650	812.5	YC6C1070-D31	195	787	L6	200* 21 0	39.58	1170	7500	4800*2100*2500
YX73 0GF	730	912.5	YC6C1220-D31	195	897	L6	200* 21 0	39.58	1314	7500	4800*2100*2500
YX80 0GF	800	1000	YC6C1320-D31	195	968	L6	200* 21	39.58	1440	7800	5200*2150*2500

National second unit model	Rated Power(K W)	Motor capacity(KVA)	Engine model	Fuel consumption power(≤ g/kw. h)	Engine				Rated current(A)	Unit weight(KG)	Dimensions(L * W * H mm)
					1H power	Cylinder number	Cylinder diameter * stroke	Displacement
							0
YX80 0GF	800	1000	YC12VTD 1 350-D30	205	990	V1 2	152* 18 0	39.58	1440	7800	5200*2150*2500
YX90 0GF	900	1125	YC6C1520-D31	195	1118	L6	200* 21 0	39.58	1620	9800	5400*2150*2600
YX90 0GF	900	1125	YC12VTD 1 500-D30	205	1100	L6	152* 18 0	39.58	1620	9800	5400*2150*2600
YX10 00GF	1000	1250	YC6C1660-D30	196	1230	V1 2	200* 21 0	79.17	1800	13350	6500*2300*2600
YX10 00GF	1000	1250	YC12VTD 1 680-D30	205	1230	V1 2	152* 18 0	79.17	1800	13350	6500*2300*2600
YX10 00GF	1000	1250	YC12VC16 80-D31	203	1230	V1 2	200* 21 0	79.17	1800	13350	6500*2300*2600
YX11 00GF	1100	1375	YC12VTD 1 830-D30	205	1342	V1 2	152* 18 0	79.17	1980	13600	6500*2300*2600
YX12 00GF	1200	1500	YC12VTD 2 000-D30	205	1480	V1 2	152* 18 0	79.17	2160	13600	6500*2300*2600
YX12 00GF	1200	1500	YC12VC20 70-D31	196	1520	V1 2	200* 21 0	79.17	2160	13600	6500*2300*2600
YX13 50GF	1350	1687.5	YC12VC22 70-D31	196	1670	V1 2	200* 21 0	79.17	2430	13800	6500*2300*2600

National second unit model	Rated Power(K W)	Motor capacity(KVA)	Engine model	Fuel consumption power(≤ g/kw. h)	Engine				Rated current(A)	Unit weight(KG)	Dimensions(L * W * H mm)
					1H power	Cylinder number	Cylinder diameter * stroke	Displacement
YX17 00GF	1700	2125	YC12VC27 00-D31	196	1985	V1 2	200* 21 0	79.17	3060	14000	6500*2300*2600
YX18 00GF	1800	2250	YC16VC30 00-D31	195	2206	V1 2	200* 21 0	105.56	3240	17500	7350*2670*2950
YX20 00GF	2000	2500	YC16VC33 00-D31	195	2426	V1 2	200* 21 0	105.56	3600	17600	7350*2670*2950
YX22 00GF	2200	2750	YC16VC36 00-D31	195	2646	V1 2	200* 21 0	105.56	3960	19200	7350*2670*2950

1. Yuchai series generator set frequency 50HZ, 1500rpm, 400V, power factor 0.8 (LAG), three-phase four-wire, if you need other special requirements, please contact us to provide additional parameters.
2. The contents of this atlas are for reference only and are not used as delivery materials. The continuous improvement of technology is without prior notice. The product model, specification, configuration and pictures are subject to the physical objects at the time of delivery. Yuxing power reserves the final right of interpretation.

Parameter list of each power segment of Yuchai diesel generator set mute model

Unit Model	Rated Power(K W)	Motor capacity(KVA)	Engine model	Fuel consumption power(≤ g/kw. h)	Engine				Rated current(A)	Unit weight(KG)	Dimensions(L * W * Hm m)
					1H power	Cylinder number	Cylinder diameter* Itinerary	Displacement
YX12 GF	12	15	YC2105D	225	19.8	L2	105 *120	2.078	18	680	2000*950* 1250
YX16 GF	16	20	YC2108D	225	19.8	L2	108 *120	2.493	28.8	685	2000*950* 1250
YX20 GF	20	25	YC2115D	225	26.4	L2	115 *120	2.493	36	690	2000*950* 1250
YX24	24	30	YC2115Z	225	33	L2	115 *	2.49	43.2	695	2000*950

Unit Model	Rated Power(K W)	Motor capacity(KVA)	Engine model	Fuel consumption power(≤ g/kw. h)	Engine				Rated current(A)	Unit weight(KG)	Dimensions(L * W * Hm m)
					1H power	Cylinder number	Cylinder diameter* Itinerary	Displacement
GF			D				120	3			* 1250
YX30 GF	30	37.5	YCD4R12 D-40	242	33	L4	98*115	3.468	54	1170	2400*1000*1250
YX30 GF	30	37.5	YCD4M12 D-50	242	39.6	L4	98*115	3.707	54	1170	2400*1000*1250
YX32 GF	32	40	YCD4J12 D-55	225	44	L4	105 *125	4.33	57.6	1170	2400*1000*1250
YX40 GF	40	50	YC4D60-D21	205	44	L4	108 *115	4.214	72	1170	2400*1000*1250
YX45 GF	45	56.25	YC4T22D-70	205	55	L4	102 *118	3.857	81	1170	2400*1000*1250
YX45 GF	45	56.25	YCD4J22 D-65	205	55	L4	105 *125	4.33	81	1320	2500*1000*1250
YX50 GF	50	62.5	YC4D85Z-D20	205	60.5	L4	108 *115	4.214	90	1320	2500*1000*1250
YX50 GF	50	62.5	YCD4P22 D-80	205	66	L4	108 *125	4.58	90	1330	2500*1000*1250
YX60 GF	60	75	YC4D90Z-D20	205	66	L4	108 *115	4.214	108	1330	2500*1000*1250
YX60 GF	60	75	YCD4Y22 D-95	205	77	L4	110 *125	4.75	108	1380	2500*1000*1450
YX64 GF	64	80	YC4A100 Z-D20	200	73.5	L4	108 *132	4.84	115.2	1380	2500*1000*1450
YX70 GF	70	87.5	YCD4Y22 D-110	225	88	L4	110 *125	4.75	126	1380	2500*1000*1450
YX75 GF	75	93.75	YC6B135 Z-D20	200	99	L6	108 *125	6.871	135	1900	2900*1100*1600
YX80	80	100	YCD4Y32	225	110	L4	110 *	4.75	1144	1900	2900*110

Unit Model	Rated Power(K W)	Motor capacity(KVA)	Engine model	Fuel consumption power(≤ g/kw. h)	Engine				Rated current(A)	Unit weight(KG)	Dimensions(L * W * Hm m)
					1H power	Cylinder number	Cylinder diameter* Itinerary	Displacement
GF			D-130				125				0*1600
YX80 GF	80	100	YC6B135 Z-D20	202	99	L6	108 *125	6.871	144	1900	2900*1100*1600
YX90 GF	90	112.5	YC4A140 L-D20	200	105	L4	108 *132	4.84	162	1900	2900*1100*1600
YX10 0GF	110	137.5	YC6B155 L-D21	200	113	L6	108 *125	6.871	180	2000	3000*1100*1700
YX12 0GF	120	150	YC6B180 L-D20	200	132	L6	108 *125	6.871	216	2050	3000*1100*1700
YX12 0GF	120	150	YC6B205 L-D20	200	152	L6	108 *125	6.871	216	2300	3100*1100*1700
YX15 0GF	150	187.5	YC6A230 L-D20	192	170.5	L6	108 *132	7.252	270	2450	3200*1100*1700
YX15 0GF	150	187.5	YC6G245 L-D20	192	181.5	L6	108 *132	7.252	270	2450	3200*1100*1700
YX20 0GF	200	250	YC6MK35 0L-D20	195	258.5	L6	123 *145	10.338	360	3100	3750*1400*2050
YX25 0GF	250	312.5	YC6MK42 0L-D20	195	309	L6	123 *145	10.338	450	3450	3900*1600*2050
YX30 0GF	300	375	YC6MJ48 0L-D20	195	352	L6	131 *145	11.726	540	3500	3900*1600*2050
YX35 0GF	350	437.5	YC6T550 L-D21	195	405	L6	145 *165	16.35	630	3500	3900*1600*2050
YX40 0GF	400	500	YC6T600 L-D22	195	441	L6	145 *165	16.35	720	5300	4500*1800*2200
YX40 0GF	400	500	YC6T660 L-D20	195	485	L6	145 *165	16.35	720	5420	4500*1800*2200
YX50	500	625	YC6TD78	195	572	L6	152 *	19.5	900	5900	4500*180

Unit Model	Rated Power(K W)	Motor capacity(KVA)	Engine model	Fuel consumption power(≤ g/kw. h)	Engine				Rated current(A)	Unit weight(KG)	Dimensions(L * W * Hm m)
					1H power	Cylinder number	Cylinder diameter* Itinerary	Displacement
0GF			0L-D20				180	98			0*2200
YX50 0GF	500	625	YC6TD84 0L-D20	195	616	L6	152 *180	19.598	900	5970	4500*1800*2200
YX60 0GF	600	750	YC6C102 0L-D20	195	748	L6	200 *210	39.584	1080	9650	20GP
YX70 0GF	700	875	YC6C107 0L-D20	195	787	V1 2	200 *210	39.584	1260	9750	20GP
Model of the third National Unit	Rated Power(K W)	Motor capacity(KVA)	Engine model	Fuel consumption power(≤ g/kw. h)	Engine				Rated current(A)	Unit weight(KG)	Dimensions(L * W * H mm)
YX16 GF	16	20	4D24G6	200	20.4	L4	87*103	2.45	28.8	1150	2400*1000*1250
YX20 GF	20	25	4D24G7	200	25.4	L4	87*103	2.45	36	1100	2400*1000*1250
YX24 GF	24	30	4D24TG2	200	30.8	L4	87*103	2.45	43.2	1150	2400*1000*1250
YX30 GF	30	37.5	4D24TG0	200	39.6	L4	87*103	2.45	54	1170	2400*1000*1250
YX40 GF	40	50	YC4D75-D34	205	55	L4	108 *115	4.21	72	1170	2400*1000*1250
YX40 GF	40	50	YC4D80-D34	205	59	L4	108 *115	4.21	72	1170	2400*1000*1250
YX50 GF	50	62.5	YC4D90-D34	205	66	L4	108 *115	4.21	90	1170	2400*1000*1250
YX60	60	75	YC4D105	205	77	L4	108 *	4.21	108	1170	2400*100

Unit Model	Rated Power(K W)	Motor capacity(KVA)	Engine model	Fuel consumption power(≤ g/kw. h)	Engine				Rated current(A)	Unit weight(KG)	Dimensions(L * W * Hm m)
					1H power	Cylinder number	Cylinder diameter* Itinerary	Displacement
GF			-D34				115				0*1250
YX64 GF	64	80	YC4A115-D30	205	85	L4	108 *115	4.21	115.2	1170	2400*1000*1250
YX70 GF	70	87.5	YC4D120-D30	205	88	L4	108 *115	4.21	126	1170	2400*1000*1250
YX80 GF	80	100	YC4D140-D30	205	105	L4	108 *115	4.21	144	2000	3000*1100*1700
YX80 GF	80	100	YC4A140-D30	205	105	L4	108 *132	4.84	144	2000	3000*1100*1700
YX90 GF	90	112.5	YC4D155-D30	205	113	L4	108 *115	4.21	162	2000	3000*1100*1700
YX90 GF	90	112.5	YC4A155-D30	205	113	L4	108 *132	4.84	162	2000	3000*1100*1700
YX90 GF	90	112.5	YC4A165-D30	205	121	L4	108 *132	4.84	162	2050	3000*1100*1700
YX11 0GF	110	137.5	YC4A190-D30	205	138	L4	108 *132	4.84	198	2050	3000*1100*1700
YX11 0GF	110	137.5	YC6A190-D30	205	138	L6	108 *132	4.84	198	2050	3000*1100*1700
YX12 0GF	120	150	YC6A205-D30	220	152	L6	108 *132	7.26	216	2300	3100*1100*1700
YX14 0GF	140	175	YC6A230-D30	220	171	L6	108 *132	7.26	252	2450	3200*1100*1700
YX15 0GF	150	187.5	YC6A245-D30	220	181	L6	108 *132	7.26	270	2450	3200*1100*1700
YX16 0GF	160	200	YC6A275-D30	220	203	L6	108 *132	7.26	288	2450	3200*1100*1700
YX20	200	250	YC6MK35	195	259	L6	123 *	10.3	360	3100	3750*140

Unit Model	Rated Power(K W)	Motor capacity(KVA)	Engine model	Fuel consumption power(≤ g/kw. h)	Engine				Rated current(A)	Unit weight(KG)	Dimensions(L * W * Hm m)
					1H power	Cylinder number	Cylinder diameter* Itinerary	Displacement
0GF			0-D30				145	4			0*2050
YX25 0GF	250	312.5	YC6MK42 0-D30	195	309	L6	123 *145	10.34	450	345	3900*1600*2050
YX28 0GF	280	350	YC6MK45 0-D30	195	331	L6	123 *145	10.34	504	3450	3900*1600*2050
YX30 0GF	300	375	YC6K500-D31	192	370	L6	129 *155	12.16	540	3500	3900*1600*2050
YX30 0GF	300	375	YC6K500-D30	192	370	L6	129 *155	12.16	540	3500	3900*1600*2050
YX32 0GF	320	400	YC6K520-D30	192	382	L6	129 *155	12.16	576	5000	4200*1600*2200
YX35 0GF	350	437.5	YC6K570-D30	192	420	L6	129 *165	12.94	630	5300	4500*1800*2200
YX40 0GF	400	500	YC6T660-D31	195	485	L6	145 *165	16.35	720	5420	4500*1800*2200
YX45 0GF	450	562.5	YC6TD78 0-D31	195	572	L6	152 *180	19.6	810	5900	4500*1800*2200
YX50 0GF	500	625	YC6TD84 0-D31	195	616	L6	152 *180	19.6	900	5970	4500*1800*2200
YX55 0GF	550	687.5	YC6TD90 0-D31	195	665	L6	152 *180	19.6	990	5970	4500*1800*2200
YX60 0GF	600	750	YC6TD10 00-D30	195	735	L6	152 *180	19.6	1080	5970	4500*1800*2200
YX60 0GF	600	750	YC6C102 0-D31	195	748	L6	200 *210	39.58	1080	9650	20GP
YX65 0GF	650	812.5	YC6C107 0-D31	195	787	L6	200 *210	39.58	1170	9750	20GP
YX73	730	912.5	YC6C122	195	897	L6	200 *	39.5	1314	9880	20GP

Unit Model	Rated Power(K W)	Motor capacity(KVA)	Engine model	Fuel consumption power(≤ g/kw. h)	Engine				Rated current(A)	Unit weight(KG)	Dimensions(L * W * Hm m)
					1H power	Cylinder number	Cylinder diameter* Itinerary	Displacement
0GF			0-D31				210	8
YX80 0GF	800	1000	YC6C132 0-D31	195	968	L6	200 *210	39.58	1440	9900	20GP
YX90 0GF	900	1125	YC6C152 0-D31	195	1118	L6	200 *210	39.58	1620	9900	20GP
YX10 00GF	1000	1250	YC6C166 0-D30	196	1230	V1 2	200 *210	79.17	1800	15500	40HQ
YX12 00GF	1200	1500	YC12VC 2 070-D31	196	1520	V1 2	200 *210	79.17	2160	16000	40HQ
YX13 50GF	1350	1687.5	YC12VC 2 270-D31	196	1670	V1 2	200 *210	79.17	2430	16500	40HQ
YX17 00GF	1700	2125	YC12VC 2 700-D31	196	1985	V1 2	200 *210	79.17	3060	17000	40HQ
YX18 00GF	1800	2250	YC16VC 3 000-D31	195	2206	V1 2	200 *210	105.56	3240	17000	40HQ
YX20 00GF	2000	2500	YC16VC 3 300-D31	195	2426	V1 2	200 *210	105.56	3600	17000	40HQ
YX22 00GF	2200	2750	YC16VC 3 600-D31	195	2646	V1 2	200 *210	105.56	3960	17000	40HQ

1. Yuchai series generator set frequency 50HZ, 1500rpm, 400V, power factor 0.8 (LAG), three-phase four-wire, if you need other special requirements, please contact us to provide additional parameters.
2. The contents of this atlas are for reference only and are not used as delivery materials. The continuous improvement of technology is without prior notice. The product model, specification, configuration and pictures are subject to the physical objects at the time of delivery. Yuxing power reserves the final right of interpretation.
